Data Simulator
Output Download simulation result
| Center | Midway | Corner | |
|---|---|---|---|
| Signal Noise Ratio | 404.35 | 420.83 | 389.99 |
| Average Net Photon Count Rate (counts/s) | 18657.39 ± 136.68 | 19549.67 ± 139.84 | 16544.55 ± 128.63 |
| Background Photon Count Rate (counts/s) | 1.16e+01 ± 3.41e+00 | 3.33e+00 ± 1.82e+00 | 4.50e-01 ± 6.71e-01 |
Quick Look
| Center | Midway | Corner | |
|---|---|---|---|
|

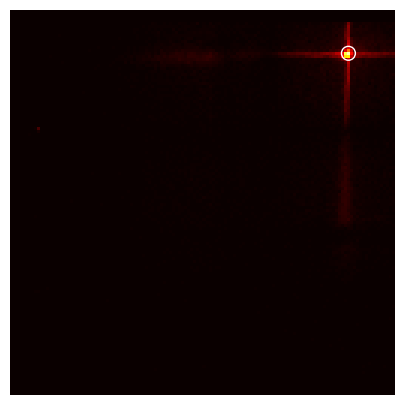

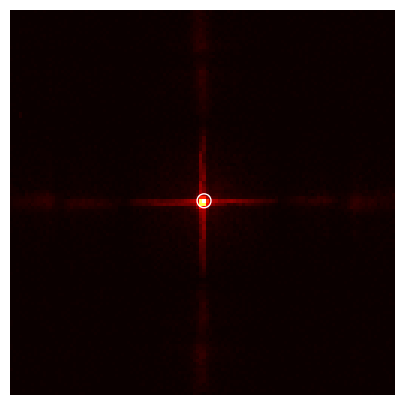

Detector Image One CMOS Chip 9.38°x9.38° |
 |
 |
 |

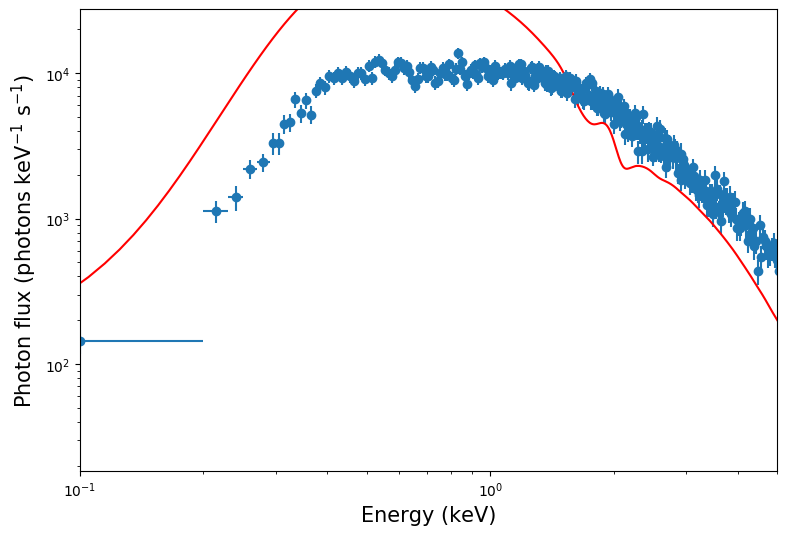

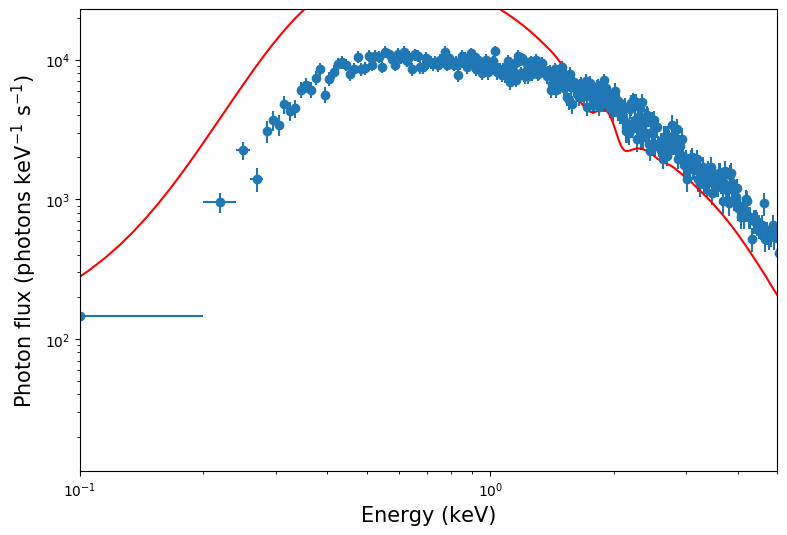

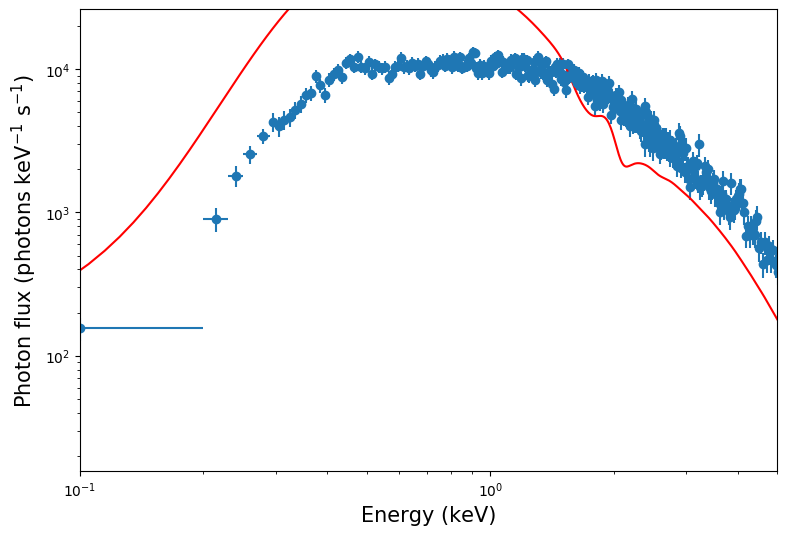

| Spectrum |  |
 |
 |
| Light Curve |  |
 |
 |
Input Summary
- None
- Anonymous
- RA(J2000)
- 72.25
- Dec(J2000)
- 15.7899
- Exposure
- 1 s
- Spectral Model
- powerlaw
- Photon Index
- 2
- Flux
- 1e-4 erg/s/cm²
- Energy Range Low
- 0.5 keV
- Energy Range High
- 4 keV
- nH
- 3e+20 cm⁻²
